Low bridges in Euroa

Family business took us to Euroa on Saturday.

The station is on the western side of the town centre. The main street goes over the railway line to the south of the station — Wikipedia notes that the the road overpass was built in 1960 during the first round of standardisation. The second round, last decade, converted the other track to standard gauge as well.

North of the station the railway line is elevated… but not by much.

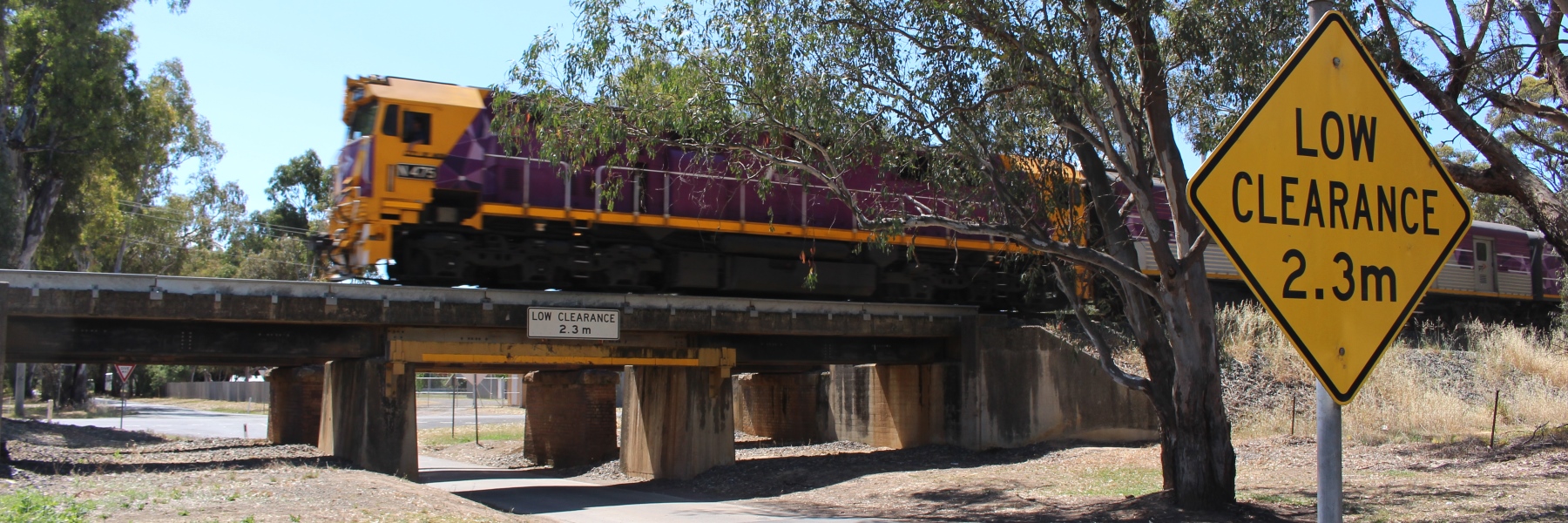

One bridge has 2.5 metres clearance, and this one has just 2.3 metres:
Euroa railway bridge over road

Euroa railway bridge over road

There’s also a pedestrian underpass that’s even lower – only just a bit higher than me, so about 2.0 metres. An adult wouldn’t be able to ride a bike through here.
Euroa railway pedestrian underpass

Unlike the Montague Street bridge in Melbourne (3 metres clearance), a quick search finds no records of collisions with the Euroa road bridges.

I mentioned the Euroa bridge on Twitter. I was pointed to a 2 metre clearance on a freeway overpass in Pyrmont, Sydney, and also this 1.7 metre railway bridge in Wales — just high enough to fit a conventional car, with a manually-operated part time level crossing adjacent for taller vehicles — amazingly, not too long ago something similar was proposed for the Dandenong line!

driving Morons on the road Toxic Custard newsletter transport

The Montague Street bridge strikes again

It used to be that the fashionable bridge for high vehicles to crash into was the Spencer/Flinders Street rail overpass — eleven hits in five years.

But it’s been usurped by the Montague Street tram bridge.

At lunchtime on Tuesday I went down to have a look.

Certainly no shortage of warnings signs. In this view alone I count four, plus the stripy guard barrier in front of the bridge:
Montague St bridge, looking south

What you may not realise is that it’s actually two parallel bridges. One takes tram route 109; the other has spare tracks used for tram storage, as part of the nearby Southbank depot. (Originally one was the Port Melbourne line; I’m guessing the other was freight tracks or sidings.)
Montague St bridge, looking north

Similar to train bridges, there are signs indicating you should ring Yarra Trams straight away if a vehicle hits the bridge. Presumably that phone number has been rung a few times recently.
Sign on Montague St bridge

I was only there for about ten minutes, but unbelievably, another vehicle hit the bridge while I was there. This truck’s exhaust pipe hit the barrier. The pipe bent markedly, but stayed on. The truck driver stopped momentarily, then just kept going.
Truck damages exhaust, Montague St bridge

Not a serious collision of course, but amazing that despite all the signage and all the publicity, it still happens so often — this was the day after it had been hit twice.

And thankfully the vehicles are really hitting the super-tough guard barrier, so damage to the bridge itself (which would cause untold delays for many tram services and passengers) has so far been avoided.


“Second river crossing”? We already have six seven.

A lot of the talk around the need for a new east-west motorway claims we need a second river crossing.

Victorian government advertising their "second river crossing"

The issue with this claim is that we already have a second river crossing.

The first river crossing is, of course, the Westgate bridge — recently-upgraded (25% boost in capacity as part of a $1.4 billion project) but still full (thank you induced traffic) — 5 lanes each way.

Westgate bridge

The second river crossing is Footscray Road. This is three lanes each way for most of its length, but where it crosses the Maribyrnong River, 2 lanes each way.

Footscray Road bridge

The third river crossing is Dynon Road, with 2 lanes each way.

Dynon Road bridge

The fourth river crossing is Smithfield Road/Ballarat Road, also with 2 lanes each way.

Smithfield Rd/Ballarat Rd bridge

So while the call is for a second river crossing, in fact the existing second, third and fourth river crossings already together provide more lanes than the Westgate Bridge.

It’s true that none of these are motorways, and therefore they have traffic lights, but this hardly matters at peak times, when traffic clogs up and crawls whether or not a road has traffic lights.

Vehicle lanes have a theoretical capacity of between 1300 and 1800 vehicles per hour, and the latest Vicroads network performance monitoring report says that the average car occupancy during peak hour in Melbourne is 1.21 (PM peak; AM is lower).

If one assumed the top of the range, that’d be a theoretical 2,178 people per lane per hour.

So for the 5 lanes each way on the Westgate plus 6 lanes each way on the other roads we’ll say they’re taking a load of up to about 23,950 people per hour.

(A little further north, but arguably outside the area of where the new motorway is wanted, are Farnsworth Avenue and Maribyrnong Road — adding a further 3 lanes each way).


There are more river crossings than just the roads.

The fifth river crossing is the four track railway line from Footscray, serving suburban and regional trains from Williamstown, Werribee (including Altona Loop), Sydenham, Geelong, Melton/Ballarat and Bendigo — 2 tracks each way.

Main rail bridge, Footscray

The sixth river crossing is the two track dual gauge railway line from Sunshine via the Bunbury Street tunnel, taking predominantly freight as well as passenger trains from Sydney, Adelaide and Albury — 1 track each way.

Rail line to Bunbury St, bridge

The seventh river crossing is about to be constructed: it’s the Regional Rail Link bridge that will take V/Line trains from Geelong, Melton/Ballarat and Bendigo off the existing four track bridge — 1 track each way. (Update: this opened in June 2015)

What’s the peak capacity of these rail lines?

Once the Regional Rail Link is opened, that will take up to 20 V/Line trains per hour, with about a capacity around 300 people each = 6000.

(V/Line train capacity varies with the length of the train. Precise passenger numbers are here for Geelong, Ballarat, Bendigo. In all cases, capacity can be increased for the shorter trains by adding more carriages, such as those about to be freed up when the Sunbury line goes electric, and more to be added with the new order of V/Line carriages.)

The slots on the suburban lines can then all be taken by suburban trains. These tracks are signalled for trains every 2 minutes, but the general rule of thumb is to use 80% of the theoretical capacity, so 2 tracks x 24 trains = 48 trains per hour. Even that At an average “desirable” figure of 800 per train = 38,400 people per hour.

(In practice in peak hour some trains have more than 800, some less. No exact figures are public, but a summary is in the load surveys.)

A theoretical total then on the three tracks of 44,400 people per hour, or about double all of the road capacity (and not counting the trains using the Bunbury Street tunnel, which bring in more people on a small number of additional trains).

But it’s needed for freight!

Freight? If freight is such a priority, why are there no truck-only lanes on the existing motorways, to ensure individuals in cars don’t delay freight? On the contrary, some of the freeways have lanes where trucks are specifically banned.

If freight is such a priority, why is there no proposal to build this new tunnel as a freight-only route?

And as I’ve noted before, if freight is a priority, and we’re not just building another road to bring more cars into the CBD, why did the original artist impressions clearly show cars heading to the CBD?

Victorian Transport Plan propaganda

The general consensus seems to be that this tunnel won’t be fully funded by government due to the huge cost. Private enterprise would have to be involved, and they would inevitably push for it to be built with city exits — to encourage car commuters onto it to generate more toll revenue — which would result in more cars clogging up the inner-north and CBD. Marvellous.

So, where to from here?

Road capacity can be increased by widening existing roads and bridges, and/or by building the $10 billion road tunnel. Like every motorway before it, it will inevitably fill with cars, increasing overall road traffic.

Rail capacity can be increased by improving rail operations, upgrading signalling (to improve track capacity), extending train lengths (particularly V/Line, but also in the longer term, metropolitan trains), new more efficient designs of trains (without intermediate cabs, for instance), and adding tracks (anything up to and including the proposed $5 billion metro rail tunnel).

But as the figures above indicate, it’s a lot more efficient to move large numbers of people by rail. Importantly, existing rail capacity can be harnessed by giving outer-suburban residents better access to stations at the start (and end, if necessary) of their trips: in particular, better more frequent connecting buses, better walking and bike facilities at stations, and of course more frequent trains all day (minimising wait times no matter when you want to travel).

Like other recent public transport upgrades, the more you improve the service, the more passengers you get, moving more people more efficiently and sustainably than in cars.

As I said last week: Do we want the next surge in travel growth in Melbourne to be in private vehicles, or sustainable modes such as public transport, walking and cycling?

Which should we be aiming for?

Update 2/7/2014: Added image of government advertising for the “second river crossing”.

See also: PTUA: Myth: There’s only one river crossing from Melbourne’s West


Sights from the Footscray station pedestrian bridge

The Footscray station pedestrian bridge opened earlier this year. As noted in this Age article, part of it will have to be demolished to cater for the Regional Fast Rail project (even though the RFR project was funded before the bridge was built… hello, forward planning).

Anyway, there are some great views from the top of the bridge. Here are some of them.

View to the Westgate bridge…
Footscray station bridge: View of the Westgate

View to the docks
Footscray station bridge: View of the docks

View to the city
Footscray station bridge: View of the City

View to the Footscray market (be thankful the smell can’t be reproduced online)
Footscray station bridge: View of the market

View to the doughnut van and the shops.
Footscray station bridge: View of the doughnut van

The crane is a sign of things to come — Footscray is one of six suburban Central Activities Districts, and is likely to be heavily developed in coming years. The first highrise buildings are going up already.

And the empty land in the foreground will make way for the new platforms and station plaza — though I’ve been assured the doughnut vendor will be looked after.

I’m terribly sorry: the one I took of the view to Franco Cozzo didn’t come out. Will go back and do it again soon.
